Product Features

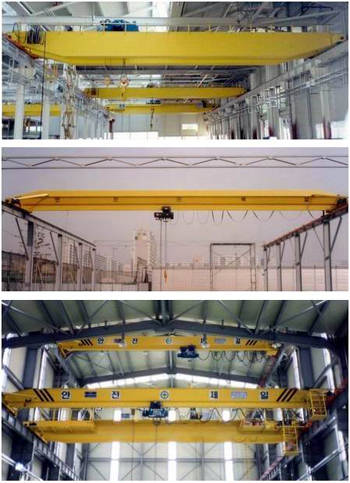

Single and Double Girder Crane, Gantry Crane.
Suspension Crane up to 50 tones capacity, Comfortable and Easy operation.
Explosion-proof and Hazardous atmosphere application is also available.
Simple, fast and safe installation. Suitable for Power, Air supply system.
Suspension Crane, Jib Crane, Stacker Crane, Tool Track, Festoon Cable rails
Specification
|
Model |
Cap.
(Ton) |
Span
(M) |
Lift(M) |
Speed(60Hz) |
Rail Size
(kg/m) |
|
Lifting
(M/min) |
Traversing
(M/min) |
Traveling
(M/min) |
|
KCS-01 |
1 |
8~24 |
6-30 |
5.2(8) |
13(25) |
15/20 |
15 |
|
KCS-02 |
2 |
7~21 |
4.4(7.2) |
13(25) |
15/20 |
15 |
|
KCS-03 |
3 |
7~21 |
4.4(7.2) |
13(25) |
15/20 |
15 |
|
KCS-05 |
5 |
7~15 |
5.3(8) |
16(25) |
20/30 |
22 |
|
KCS-10 |
10 |
7~12 |
4.5(6) |
10(15) |
20/30 |
30 |
|
KCD-03 |
3 |
11~30 |
4.4(7.2) |
13(25) |
20/30 |
15 |
|
KCD-05 |
5 |
11~30 |
5.3(8) |
16(25) |
20/30 |
22 |
|
KCD-10 |
10 |
11~30 |
4.5(6) |
10(15) |
20/30 |
30 |
|
KCD-15 |
15 |
11~30 |
4.5(6) |
12(18) |
20/30 |
30 |
|
KCD-20 |
20 |
11~30 |
3.75(5) |
12(18) |
20/30 |
37 |
|
KCD-30 |
30 |
11~30 |
7.5(3.3) |
12(18) |
20/30 |
37 |
|
KCD-50 |
50 |
11~30 |
7.8 |
15 |
20/30 |
50 |
|
|
|
|
| |
|
|
|
